CAE RC Car
Fall 2014
Project Parameters
-
5 man team
-
Fully Parametric assembly
-
Optimized relative to weight, stiffness, and drag
Highlights
-
6.25% weight reduction
-
Advanced parametrics including conditional morphing
My Part
-
Led parametric design - only team without a total model rebuild
-
Coordinated model colaboration
Project Skills
Advanced Parametric CAD (NX), FEA (NX Nastran), CFD (Star CCM), Topology Optmization (Solidthinking Inspire)

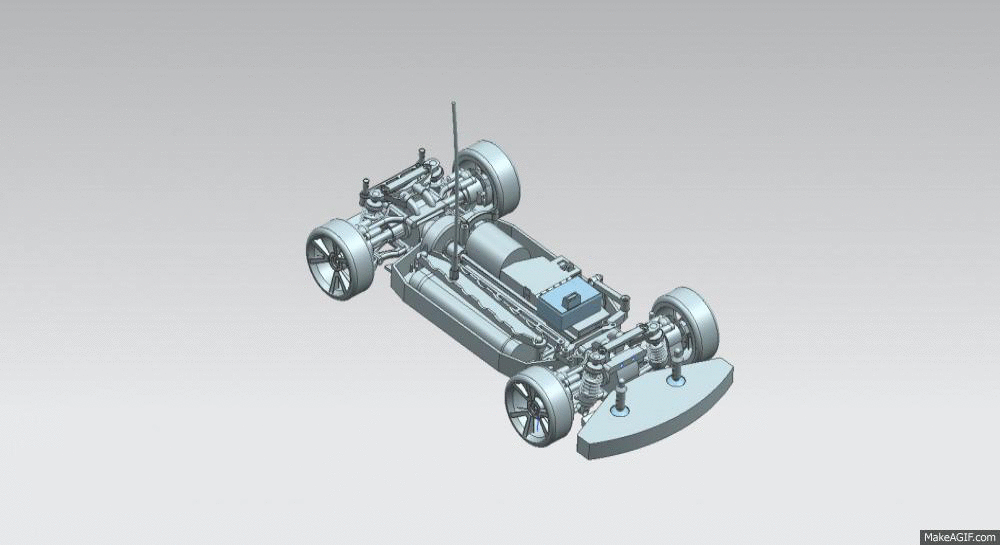

The semester-long project project / class competition in our CAE tools class revolved around this RC car. Our team built this parametric NX model from scratch, then analyzed and refined it using FEA, CFD, motion analysis and topology optimization. Our team took first place as judged by industry sponsors including Siemens, Altair, and Boeing.
